Split Back Up Flange by The Marzolf Company

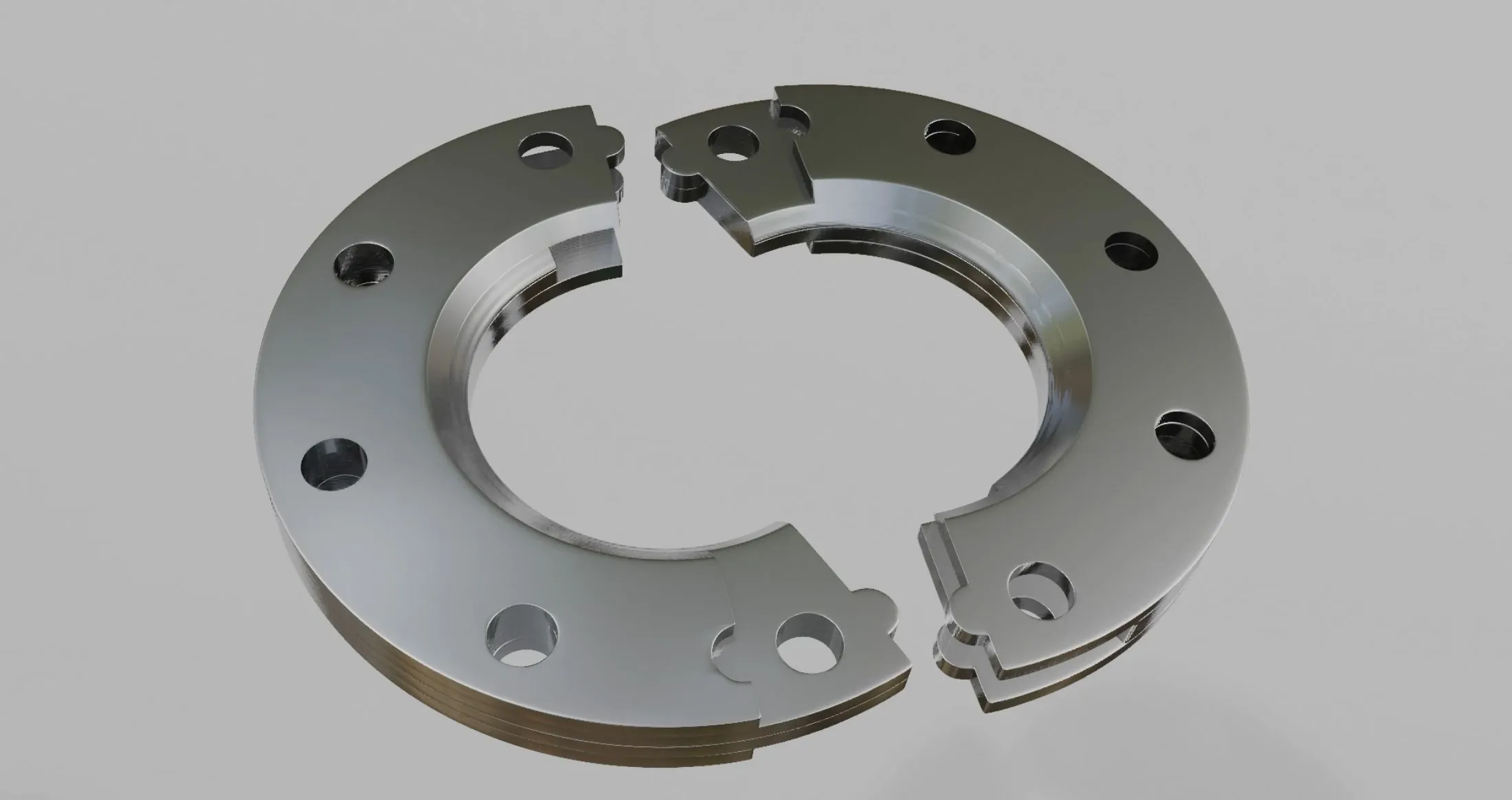

Marzolf™ two-piece back-up flanges are made with self-positioning laminae, which interleave when flange halves are brought together to form a rigid solid ring equivalent for 150 & 300 pound service. Marzolf™ flanges are made of various materials to fit all types of pipe, tube and fittings.
MADE OF:
• Stainless Steel
• Carbon Steel (Zinc Plated)
• Epoxy Coated
• Teflon Coated
• PVC & CPVC Plastic
• Custom Alloys
|
TO FIT:
• Tube/pipe
• Stub Ends (A,B,or C)
• Angle Face Rings
• Beaded End Hose
• Fiberglass Pipe
• Lined Pipe
• Polyethylene Pipe
• PVC/CPVC Pipe
• Others
|
INCLUDES:
• ANSI Class 150 lb. Bolt hole pattern
• ANSI Class 300 lb. Bolt hole pattern
• Reducing Flanges
• Metric
• DIN
• Custom Design & Fabrication
|
Marzolf™ Two-Piece Back-Up Flanges are a Cost-Effective Alternative to Standard Lap Joint or Van Stone Style Flanges
The two-piece concept eliminates the problem of cutting off and rewelding stub ends and permits quick, permanent replacement of failed one piece rings. The two-piece advantage reduces the labor and down time normally required for this type of repair or installation.
Marzolf™ two-piece back-up flanges offer alternative to standard lap joint or Van Stone style flanges. They are made with self-positioning laminae, which interleave when flange halves are brought together to form rigid solid ring. Two-piece concept eliminates problem of cutting off and rewelding stub ends and permits permanent replacement of failed one-piece rings. Various materials are available to fit all types of pipe and fittings. Custom design and unique alloy specifications are also available.
|
